| General |
| Model |
iTrans UC-F300 |
| Name |
4K60 USB-C Over Fiber Extender |
| USB-C Compliance |
USB Type- 1.1 Display Port ALT Mode |
| HDCP compliance |
HDCP 2.3/2.2/1.x |
| Video Bandwidth |
32.4Gps (8.1/5.4/2.7/1.62bps) |
| Input & Output Video Resolution |
4096×2160p/60/50, 3840×2160p/60/50/30/25, 1920x1200p/60, 1920x1080p/60/50, 1360×768p/60, 1280x800p/60, 1280×720p/60/50, 1024×768p/60 Any VESA resolution is supported. |
| Color Space |
RGB, YCbCr 4:4:4/ 4:2:2, YUV 4:2:0 |
| Color Depth |
8-bit, 10-bit, 12-bit |
| Audio Formats |
LPCM, Dolby Digital/Plus EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS: X |
| Fiber Optic |
10G SFP+ module |
| Transmission Distance |
Up to 10km over a single-mode fiber cable Up to 300m over multi-mode OM4 fiber cable |
| ESD Protection |
IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Transmitter |

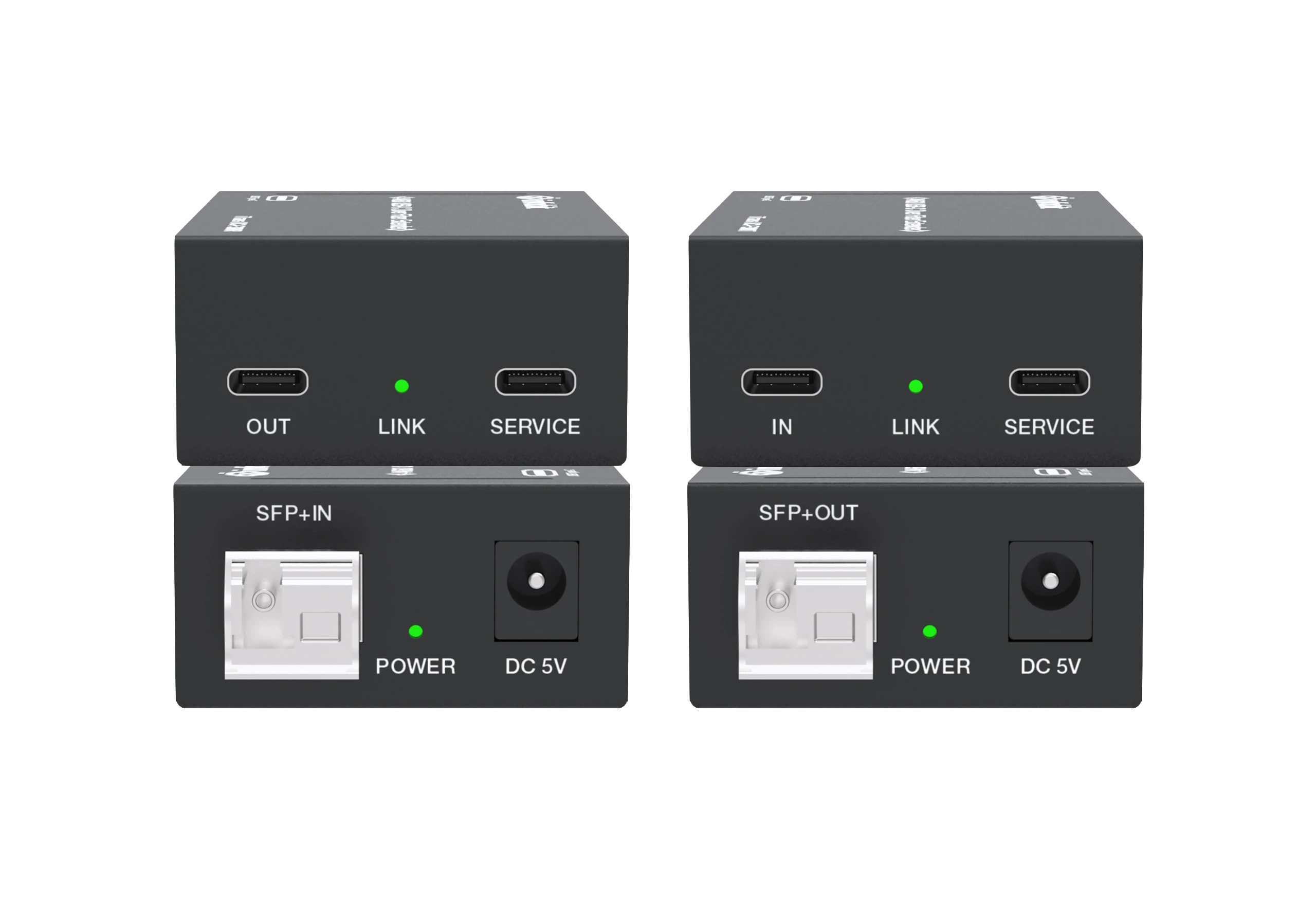

Input: 1x IN [USB-C, 24-pin female] 1x SERVICE [USB-C, update port] Output: 1x SFP+OUT [LC female] |
| Receiver |
Input: 1x SFP+IN [LC female] 1x SERVICE [USB-C, update port] Output: 1x OUT [USB-C, 24-pin female] |
| Housing |
Metal Enclosure |
| Color |
Black |
| Dimensions |
Transmitter or Receiver: 81×49×25mm, WDH |
| Weight |
Transmitter or Receiver: 138g |
| Power Supply |
Input: AC 100 – 240V 50/60Hz Output: DC 5VIA (US/EU standards, CE/FCC/UL certified) |
| Power Consumption |
Transmitter: 2.7W (Max), Receiver: 2.5W (Max) |
| Operating Temperature |
32°F – 104°F /0°C – 40°C |
| Storage Temperature |
-4°F-140°F/-20°C -60°C |
| Operating Humidity |
20%-80% (relative non-condensing) |
| Storage Humidity |
10%-90% (relative non-condensing) |
| Mix with iTrans DH-F300 |
YES |
