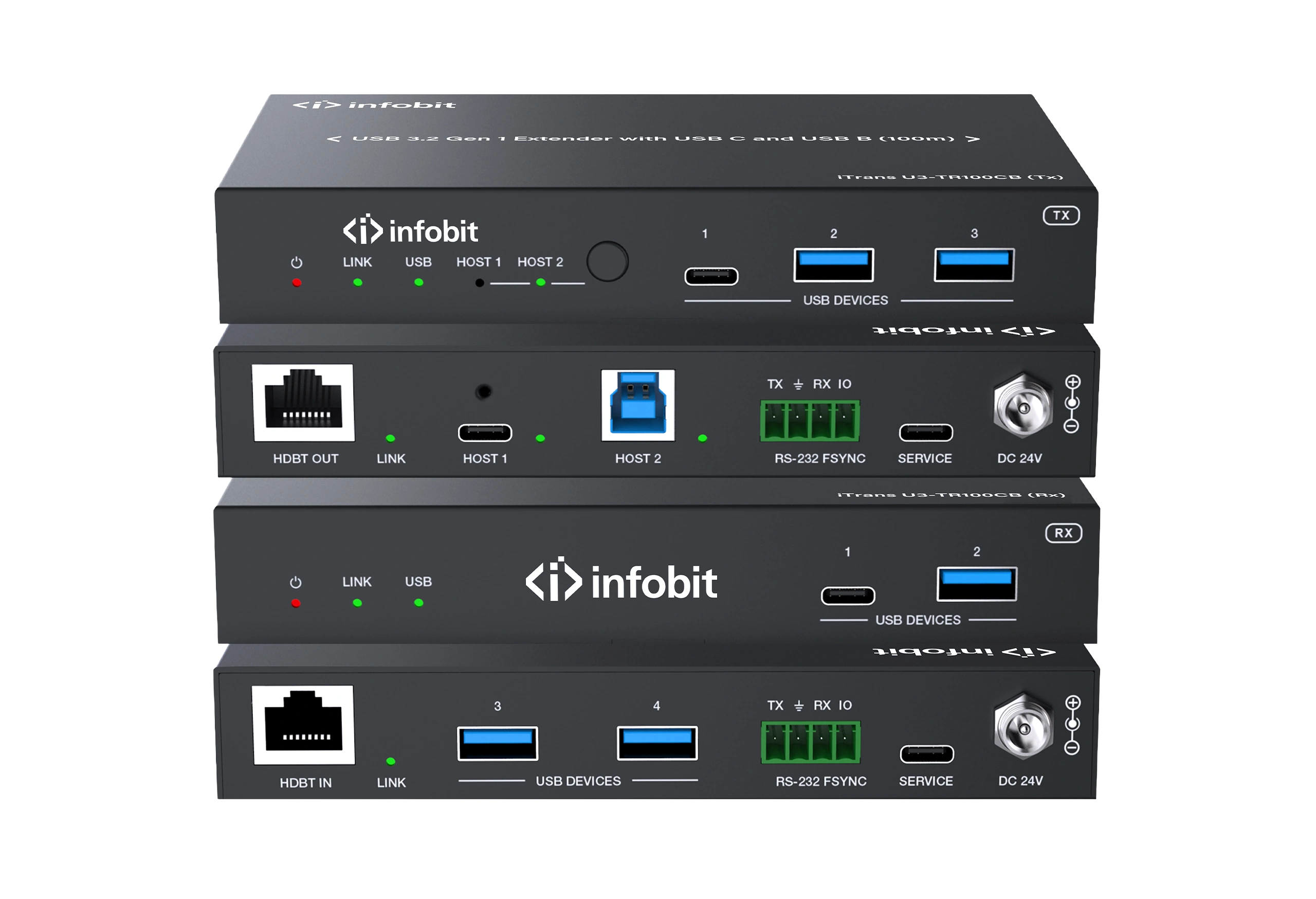

| Model | iTrans U3-TR100CB |
| Name | USB 3.2 Gen 1 Extender with USB C and USB B (100m) |
| USB Protocol | USB 3.2 Gen 1 |
| Transmission Rate | Up to 5Gbps |
| Transmission Distance | 100m/328ft via CAT6a (F/FTP) cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Transmitter | Input: 1× HOST 1 [USB Type C, 24-pin female] 1× HOST 2 [USB Type B, 9-pin female] |
| Output: 1× USB-C DEVICE [USB Type C, 24-pin female] 2× USB-A DEVICE [USB Type A, 9-pin female] 1× HDBT-USB3 [RJ45 connector, 24V PoC] |
| Control: 1× RS-232 [3pin-3.5mm phoenix connector] 1× FSYNC [1pin-3.5mm phoenix connector] 1× SERVICE [USB Type C, firmware update port] |
| Receiver | Input: 1× HDBT-USB3 [RJ45 connector, 24V PoC] Output: 3× USB-A DEVICE [USB Type A, 9-pin female] 1× USB-C DEVICE [USB Type C, 24-pin female] Control: 1× RS-232 [3pin-3.5mm phoenix connector] 1× FSYNC [1pin-3.5mm phoenix connector] 1× SERVICE [USB Type C, firmware update port] |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 140mm [W] × 75mm [D] × 23mm [H] |
| Weight | Transmitter: 313g; Receiver: 318g |
| Power Supply | Input: AC 100~240V 50/60Hz; Output: DC 24V/3.75A |
| Power Consumption | Transmitter: 23W (Max); Receiver: 35W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~80% relative humidity, non-condensing |
| Storage Humidity | 10%~90% relative humidity, non-condensing |
