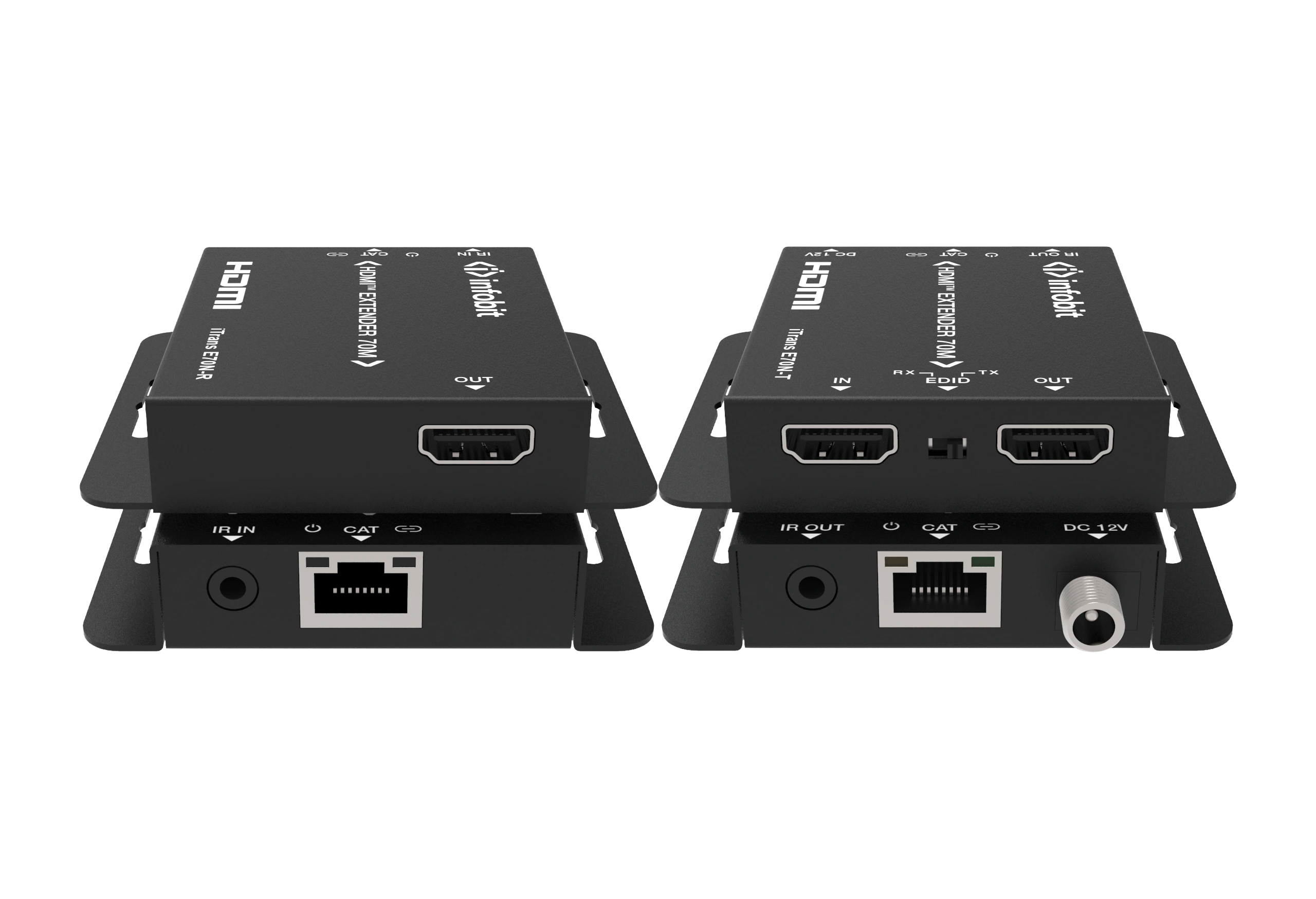

iTrans E70N

Infobit

Part Number: iTrans-E70N

4K30 HDMI Extender via CAT6/5E, up to 70m, with IR control.

Product Overview

The iTrans E70N is an HDMI extender that transmits signal up to 70m (1080p) or 40m (4K30) over a single CAT6/5E cable, equipped with EDID management, HDMI loop-out for cascading, one-way PoC, and one-way IR control.

Key Features

HDMI 1.4, HDCP 1.4, DVI 1.0 compliant
10.2Gbps video bandwidth, up to 4K@30Hz YUV 4:4:4
Audio up to 7.1CH HD audio
CAT6: 70m (1080p) / 40m (4K30); CAT5E: 60m (1080p) / 35m (4K30)
EDID copy from the receiver or loop-out display
HDMI loop-out port for cascading
One-way PoC (transmitter to receiver)
One-way IR signal transmission
Compact design, easy installation

Specifications

Model	iTrans E70N
Name	4K30 Extender 70m
HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Video Bandwidth	10.2Gbps
Input TMDS Signal	3.3 volts
Input DDC Signal	5.0 volts/P-P
Audio Support	Up to 7.1CH HD audio
ESD Protection	IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Video Resolution	Up to 4K@30Hz
Transmitter	Input: 1x IN [HDMI Type A, 19-pin female]
Output:1x OUT [HDMI Type A, 19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female]
Receiver	Input: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female]
Output: 1x OUT [HDMI Type A, 19-pin female]
Housing	Metal Enclosure
Color	Black
Dimensions	79.5mm[W] x 69mm[D] x 16.5mm[H]
Weight	Transmitter: 132g, Receiver: 130g
Power Supply	12V/1A DC
Power Consumption	Transmitter: 1.86W, Receiver: 0.87W
Operating Temperature	32 – 104°F / 0 – 40°C
Storage temperature	-4 – 140°F / -20 – 60°C
Operating Humidity	20% – 80% RH (no condensation)
Storage Humidity	10% – 90% RH (no condensation)

Applications

Instalasi AV profesional jarak menengah-jauh
Konektivitas perangkat BYOD
