iTrans E150CL

Infobit

Part Number: iTrans-E150CL

1080p60 HDMI HDBaseT Extender, up to 150m, bi-directional IR/RS232.

Product Overview

The iTrans E150CL is an HDBaseT extender for Full HD 1080p signal over a range of up to 150m, with bi-directional IR and RS232 pass-through, plus PoC so no power is needed at either end.

Key Features

1080p transmission up to 150m via Cat5e/Cat6
PoC (Power over Cable) – no power required at either end
Bi-directional IR and RS232 pass-through
Plug and play, compact for behind-the-TV installation

Specifications

General
Models compare	E70C
Distance	1080P/60Hz 70m; 4K/30Hz 40m
Must be used in pair	No, Tx/Rx can be used separately
Loopout	No
De-embeded audio	No
HDR	No
HDMI	HDMI 1.4, 10.2Gpbs
HDCP	HDCP 2.2
POC (Power Over Cable)	Yes
Bi-directional IR and RS232	Yes

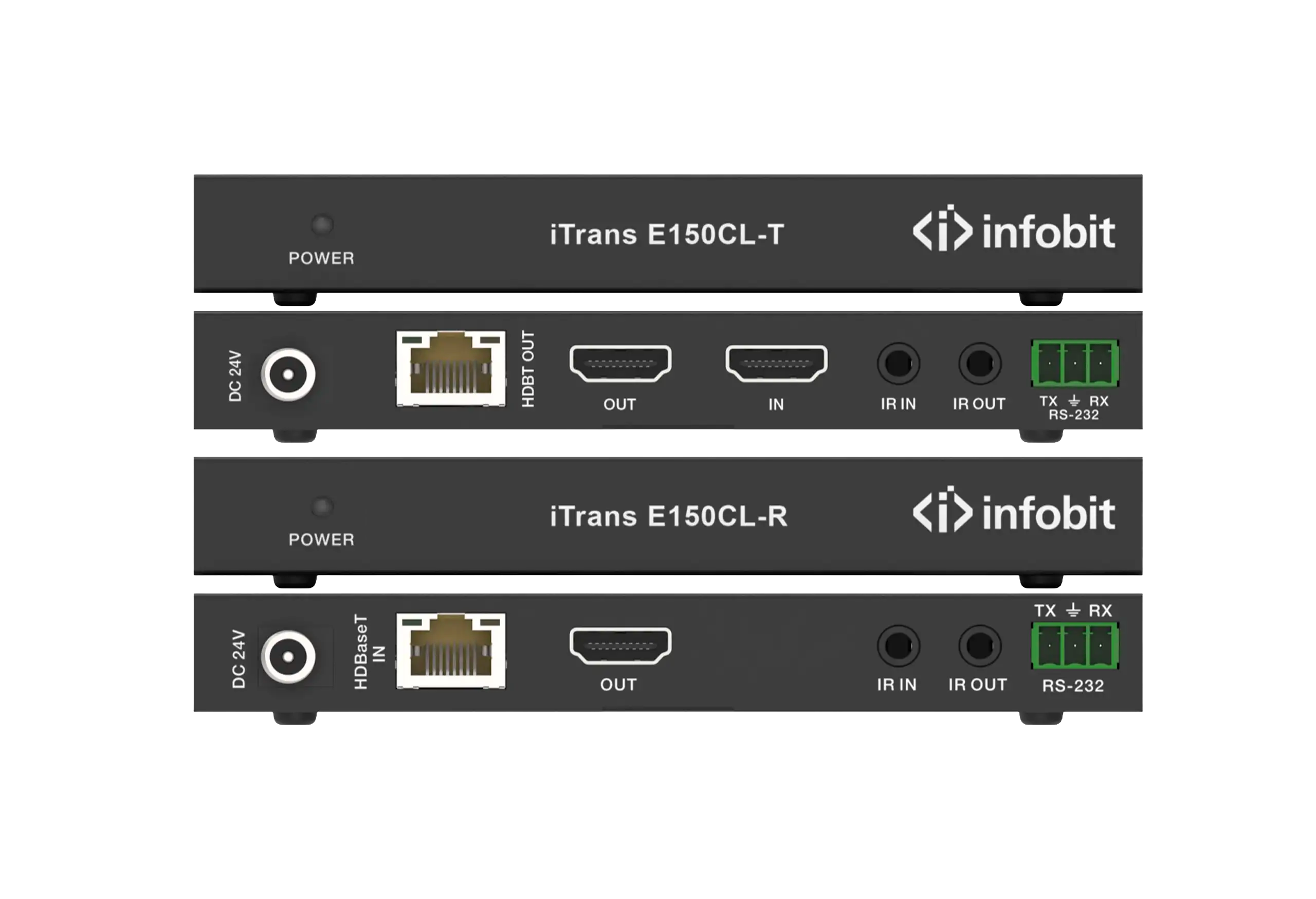

Transmitter I/O	Input: 1×HDMI Type A, 19-pin Output: 1×HDBaseT Out, RJ45 Control: 1×IR In (3.5mm Stereo Mini-jack); 1×IR Out (3.5mm Stereo Mini-jack); 1×RS-232 (Phoenix jack)
Receiver I/O	Input: 1x HDBaseT Input, RJ45 Output: 1x HDMI Type A, 19-pin Control: 1×IR In (3.5mm Stereo Mini-jack); 1×IR Out (3.5mm Stereo Mini-jack); 1×RS-232 (Phoenix jack)
Net Dimensions	WHD: 120mm x 16mm x 74mm
Net Weight	240g/ Tx or Rx
Power Supply	Input: AC100 – 240V 50/60Hz Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	10W
Operation Temperature	32 – 104°F / 0 – 40°C
Storage Temperature	-4 – 140°F / -20 – 60°C
Relative Humidity	20 – 90% RH (non condensation)

Applications

Instalasi AV profesional jarak menengah-jauh
Konektivitas perangkat BYOD
