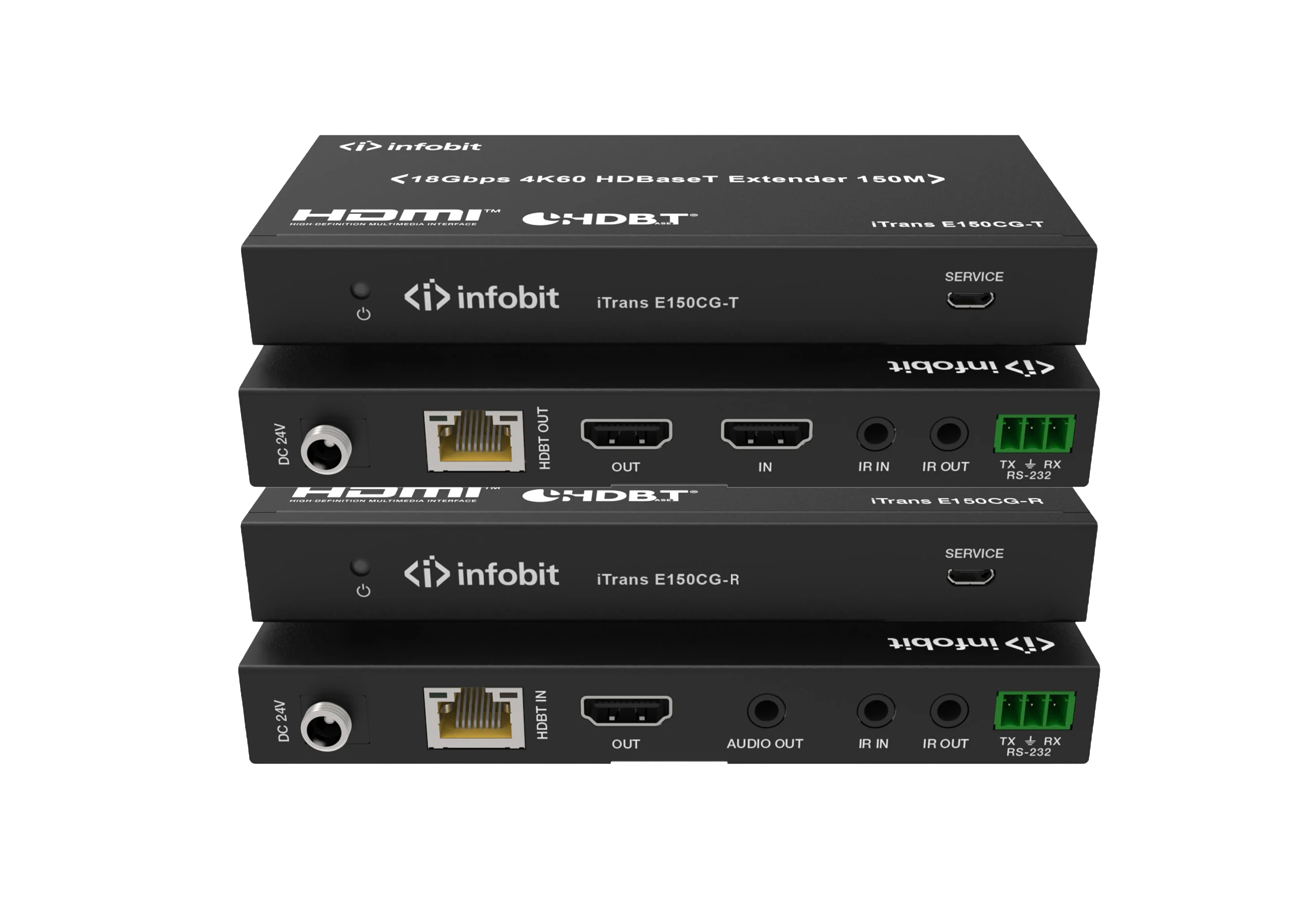

iTrans E150CG

Infobit

Part Number: iTrans-E150CG

18Gbps HDMI over HDBaseT Extender with Bi-directional IR (150m).

Product Overview

The iTrans E150CG is an 18Gbps HDBaseT extender with a range of up to 150m, supporting 4K2K@60Hz 4:4:4 resolution, HDCP 2.2, HDMI loop out, L/R audio de-embedding, PoC, and 2-way IR pass-through.

Key Features

Up to 4K2K@60Hz 4:4:4, 18Gbps, HDCP 2.2
Range up to 150m
1x HDMI loop output
L/R audio de-embed output
PoC (Power over Cable)
Bi-directional IR pass-through

Specifications

General
Model	iTrans E150CG
Distance	1080P/60Hz 150m; 4K/60Hz 120m
Must be used in pair	Yes
Loopout	Yes
De-embeded audio	Yes
HDR	Yes
HDMI	HDMI 2.0b, 18Gpbs
HDCP	HDCP 1.4/ 2.2
CEC & HDCP passthrough	Yes
POC (Power Over Cable)	Yes
Bi-directional IR and RS232	Yes
Transmitter I/O	Inputs: 1x HDMI Type A, 19-pin female; 1x SERVICE (Mini-USB, Update port) Outputs: 1x HDBaseT OUT, RJ45; 1x HDMI Type A, 19-pin female (loopout); Control: 1x IR In (3.5mm Stereo Mini-jack); 1x IR Out (3.5mm Stereo Mini-jack); 1x RS-232 (Phoenix jack)
Receiver I/O	Inputs: 1x HDBaseT Input, RJ45; 1x SERVICE (Mini-USB, Update port) Outputs: 1x HDMI Type A, 19-pin female; 1x AUDIO OUT (3.5mm Stereo Mini-jack); Control: 1x IR IN (3.5mm Stereo Mini-jack); 1x IR Out (3.5mm Stereo Mini-jack) 1x RS-232 (Phoenix jack)
Net Dimensions	WHD: 140mm x 18mm x 65mm
Net Weight	Tx: 160g, Rx: 155g
Power Supply	Input: AC100 – 240V 50/60Hz Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	9.36W
Operation Temperature	32 – 104°F / 0 – 40°C
Storage Temperature	-4 – 140°F / -20 – 60°C
Relative Humidity	20 – 90% RH (non condensation)

Applications

Instalasi AV profesional jarak menengah-jauh
Konektivitas perangkat BYOD
