iMatrix M

Infobit

Part Number: iMatrix-M

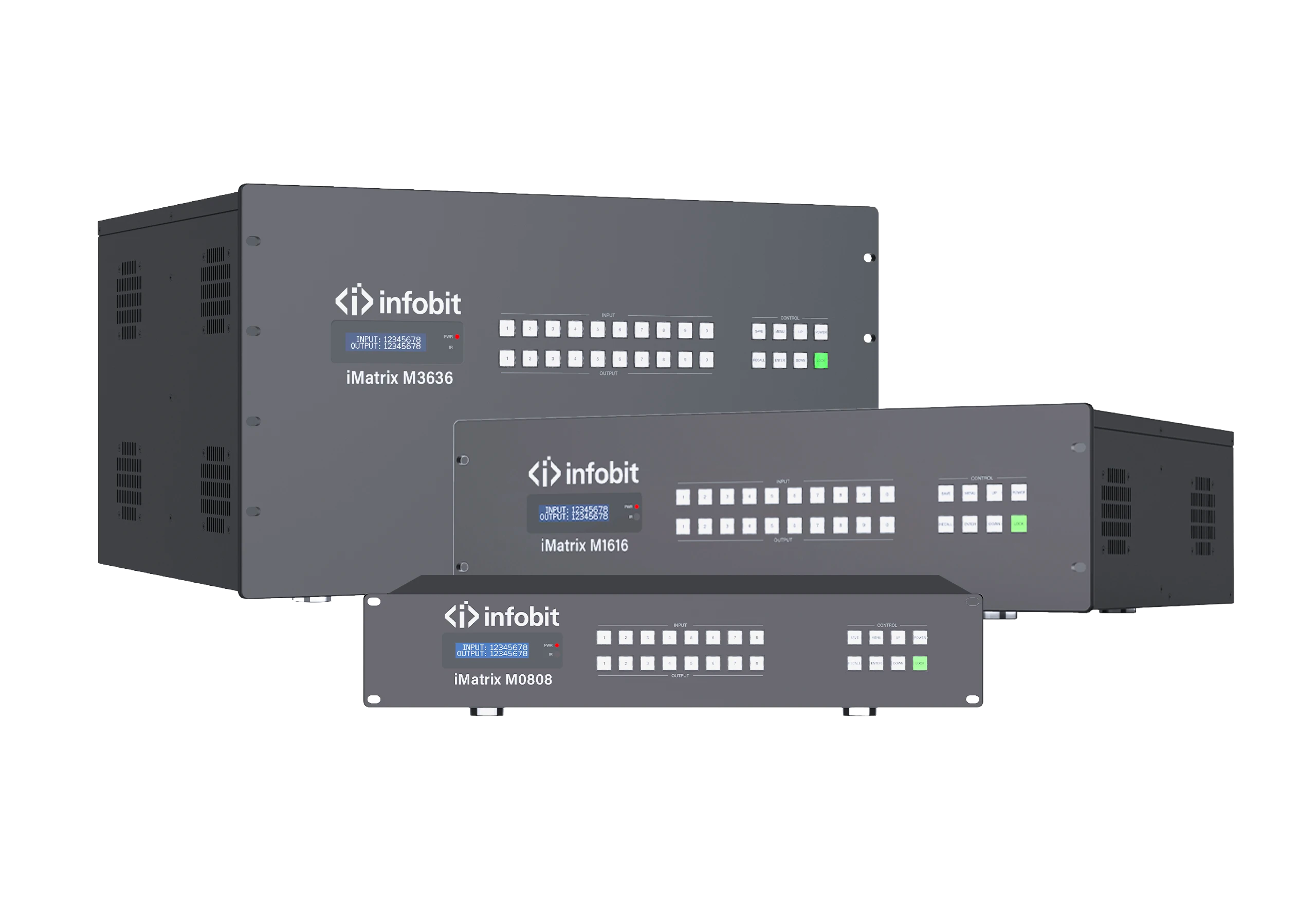

4K Modular Seamless Matrix Switcher w/ Videowall, 3 chassis (8×8/16×16/36×36).

iMatrix M Series

Product Overview

The iMatrix M is a pure-hardware modular matrix switcher available in 3 chassis options (8×8, 16×16, 36×36), supporting seamless 4K60 switching with no black screen, while also functioning as a video wall processor with Gen-Lock technology (inter-channel latency <0.1ms).

Key Features

HDMI 2.0b, HDCP 2.2, up to 4K60 YCbCr 4:4:4 (4K card) / HDMI 1.4 (2K card)
Modular: 3 chassis (8×8, 16×16, 36×36), 4 ports per I/O card
Flexible I/O: HDMI, DVI, VGA, SDI, Fiber, HDBaseT (70/100/150m)
Seamless switching with no image tearing/black screen/flicker
Gen-Lock videowall technology, inter-channel latency <0.1ms
Up to 64 scene presets
Control via front panel, IR, RS-232, TCP/IP, Web GUI, PC software
Redundant dual-power design, silent fan

Specifications

General
Model	iMatrix M
Name	4K Modular Seamless Matrix Switcher w/ Videowall
HDMI Compliance	HDMI 1.4 (2K series card), HDMI 2.0b (4K series card)
HDCP Compliance	HDCP 1.4 (2K series card), HDCP2.2 (4K series card)
Video Bandwidth	600MHz/18Gbps
Video Resolution	1920x1200p60Hz (2K series card) 3840x2160p60Hz 4:4:4 (4K series card)
Color Depth	2K series card: 8/10/12-bit (1080P60Hz) 4K series card: 8/10/12-bit (4K30Hz); 8-bit (4K60Hz 4:4:4)
Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Audio Formats	HDMI audio: LPCM 2.0 / 5.1 / 7.1CH Analog audio: LPCM 2.0CH
Transmission Distance	HDMI: 1080P/15 meters, 4K30/10 meters, 4K60/5 meters HDBT: 1080P/70 meters/100 meters/150 meters; 4K/40 meters/70 meters/120 meters
Chassises	iMatrix M808 (8×8): 2x input card slots, 2x output card slots. iMatrix M1616 (16×16): 4x input card slots, 4x output card slots. iMatrix M3636 (36×36): 9x input card slots, 9x output card slots.
Input cards (4 ports per card)	2K: HDMI, DVI, VGA, SDI, Fiber, HDBaseT 70m, HDBaseT 100m, HDBaseT 150m 4K: HDMI, HDBaseT 70m, HDBaseT 100m, HDBaseT 150m
Output cards (4 ports per card)	2K: HDMI, DVI, VGA, SDI, Fiber, HDBaseT 70m, HDBaseT 100m, HDBaseT 150m 4K: HDMI, HDBaseT 70m, HDBaseT 100m, HDBaseT 150m
Control Ports	1x Master control card, including the following ports: 1x RS-232 [3-pin Phoenix Connector] 4x COM [3-pin Phoenix Connector] 1x IR-SERIAL [4-pin Phoenix Connector] 1x RELAY [4-pin Phoenix Connector] 1x I/O [3-pin Phoenix Connector] 1x RESET [Reset button for the central control system] 3x LAN [RJ45]
Housing	Metal Enclosure
Color	Black
Dimensions	8×8 Matrix: 483mm (W) × 377mm (D) × 89mm (H) 16×16 Matrix: 483mm (W) × 379mm (D) × 133mm (H) 36×36 Matrix: 483mm (W) × 378mm (D) × 266mm (H)
Weight	8×8 Matrix: 5.95kg (No input/output cards are included) 16×16 Matrix: 8.62kg (No input/output cards are included) 36×36 Matrix: 15.4kg (No input/output cards are included)
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	8×8 Matrix: 40W~190W (Match with different input/output cards) 16×16 Matrix: 80W~320W (Match with different input/output cards) 36×36 Matrix: 200W~840W (Match with different input/output cards)
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20~90% RH (no condensation)
